Ubiquiti UISP – UFiber GPON – XG/XGS – OLT SFP Module – UB-UF-OM-XGS

Connector type – SC/UPC

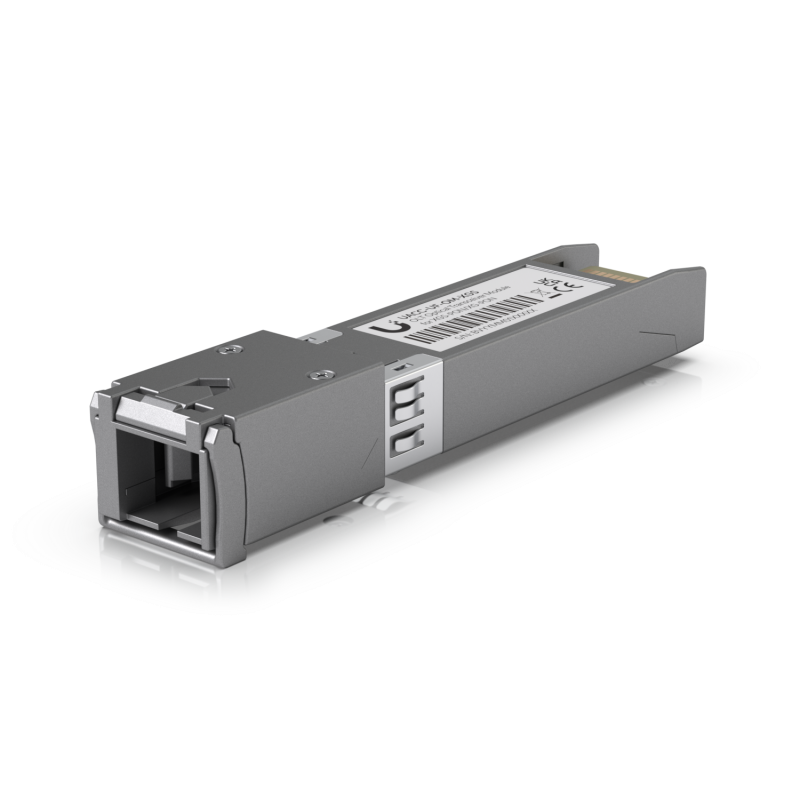

The Ubiquiti UISP UFiber XGS Optical Transceiver is a high-performance SFP+ (Small Form-factor Pluggable Plus) module designed for XGS-PON and XG-PON OLT (Optical Line Terminal) applications. It supports single-mode fiber connections via an SC/UPC connector and enables high-speed data transmission with up to 10 Gbps downstream and 10 Gbps upstream for XGS-PON, and up to 10 Gbps downstream and 2.5 Gbps upstream for XG-PON.

Form Factor: SFP+
Connector Type: (1) SC/UPC
Supported Media: Single-Mode Fiber (SMF)
Wavelength (XGS-PON): 1577 nm TX / 1270 nm RX
Wavelength (XG-PON): 1577 nm TX / 1270 nm RX
Data Rate (XGS-PON): 10 Gbps Downstream / 10 Gbps Upstream
Data Rate (XG-PON): 10 Gbps Downstream / 2.5 Gbps Upstream
Maximum Reach: Up to 20 km (dependent on fiber and link budget)
Operating Temperature: 0 to 70° C (32 to 158° F)
