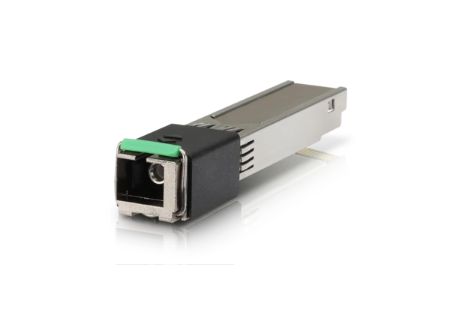

Ubiquiti UISP – Fiber Instant – GPON ONU/ONT – UB-UF-INSTANT

GPON CPE in the form factor of an SFP module, SGMII Ethernet Port, Does NOT support 3rd party OLTs.

The UFiber Instant is a high-performance GPON (Gigabit Passive Optical Network) Optical Network Unit/Terminal (ONU/ONT) in a compact SFP (Small Form-factor Pluggable) module form factor. It is designed to be powered directly through an SFP port and features one SGMII (Serial Gigabit Media Independent Interface) Ethernet LAN port.

GPON Standard: ITU-T G.984
WAN Interface: (1) SC/APC connector
LAN Interface: (1) SGMII Ethernet
Management Interface: Ethernet In-Band, PON
Power Method: SFP
Supported Voltage Range: 3.3V
Max. Power Consumption: 2W
Downstream Data Rate: 2.488 Gbps
Upstream Data Rate: 1.244 Gbps
TX Wavelength: 1310 nm
RX Wavelength: 1490 nm
TX Power Range (Class B+): 1.5 to 5 dBm
RX Power Range: -28 to -8 dBm
Maximum Reach: Up to 20 km
Operating Temperature: -10 to 45° C (14 to 113° F)
Operating Humidity: 10 to 90% noncondensing
