4900–6400 MHz,31 dBi gain – Compatible B5x, C5x, C6x

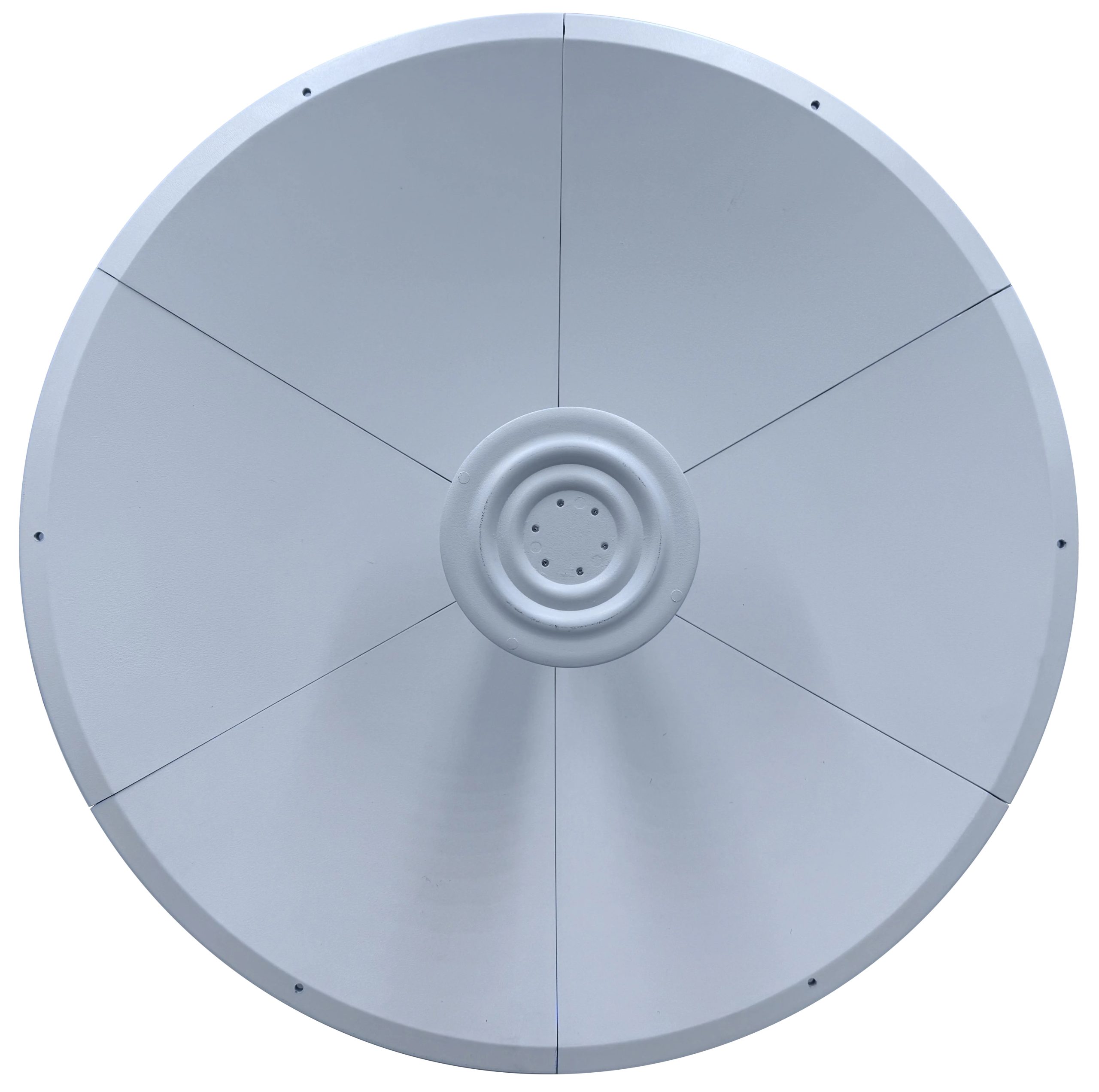

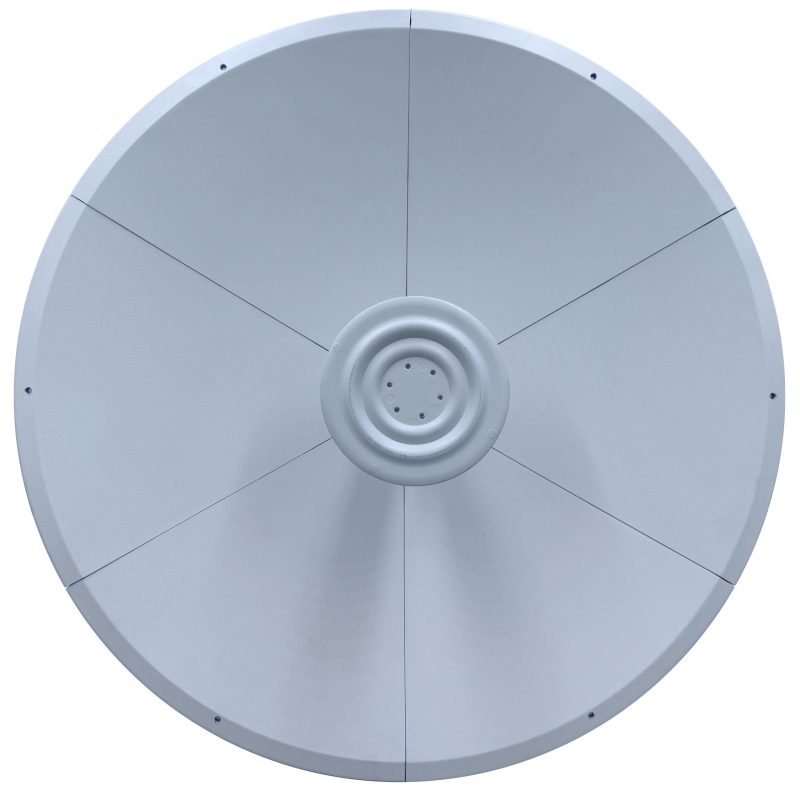

The Mimosa N5-X30 is a versatile MIMO dish antenna for Mimosa XSeries (B5x, C5x and C6x), operating in the 4.9-6.4 GHz range. It features twist-on adapters, 30 dB port-to-port isolation, and a 35 dB front-to-back ratio. With a collapsible design for easy transport and quick installation, this 2-foot dish has 50 Ohms impedance, 50W max input power, and operates from -40 to 70°C. Made with an aluminum base and DC grounded for lightning protection, it supports vertical/horizontal or ±45° slant polarisation, perfect for enterprise, industrial, telecom, and backhaul applications.
